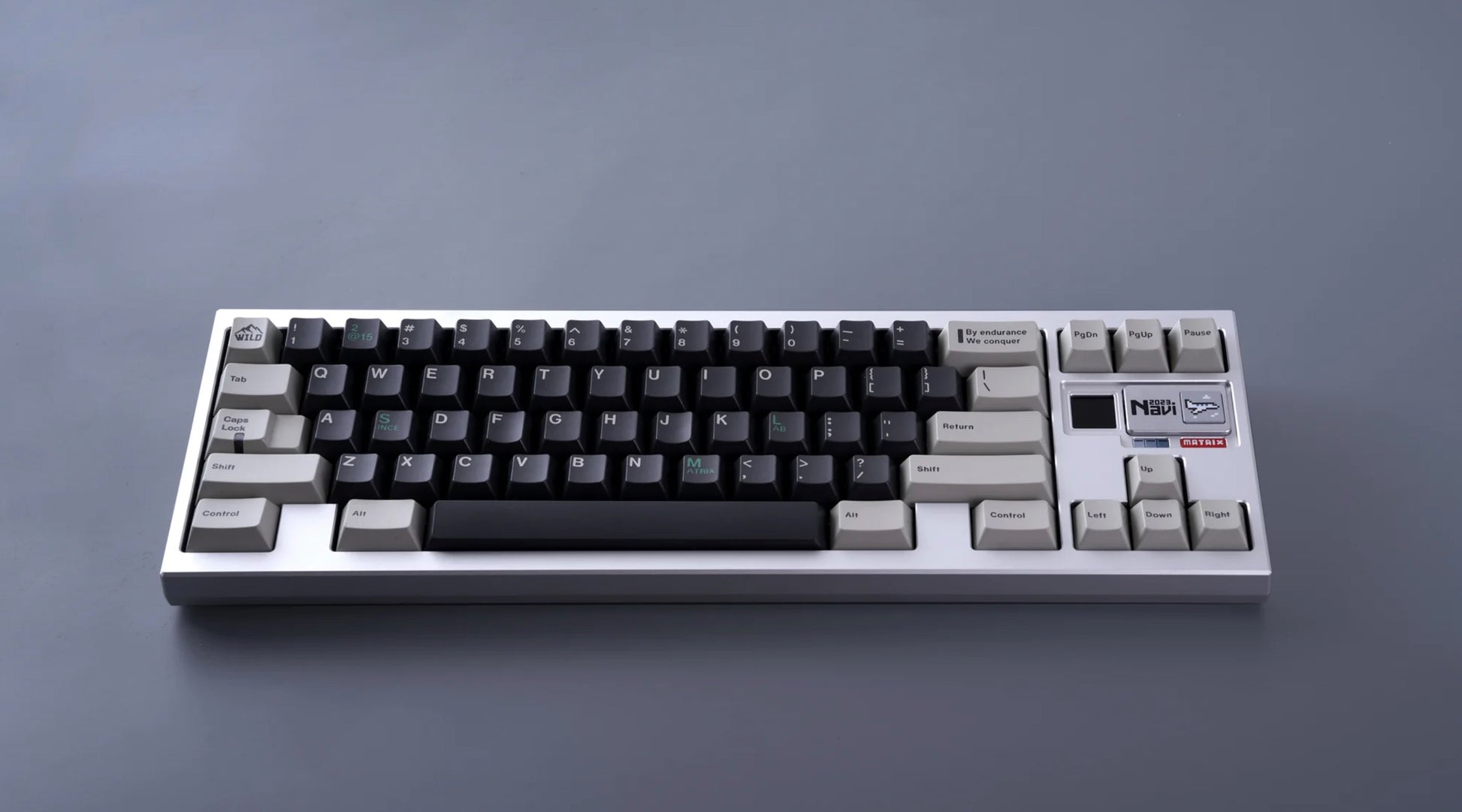

MATRIX NAVI - White Sand

Blue part:

• 0.85 inch LCD screen (Same as Corsa)
• The resolution is 128 * 128
• Can display gif image (need to convert to a specific format)

Green part:

• 4mm stainless badge with stone washing and PVD mirror finish
• Compatible with previous badge
• Magnetic assembly

Yellow part:

• LED

Angle:

• 8 degrees

Front height:

• 20mm
• 24.9mm (with switch)

PCB:

• Designed and supported by Astro
• Hot-Swap PCB only
• VIAL supported
• Flex cut on the base area

Plate:

• Split plate for base area and function area
• We will be sending two plates for the base area for Navi. One with the flex cut and the other one without
